Writing your first gather pattern

You want a custom gather route you can tune yourself. A gather pattern is a short Lua script that tells Revolution how to move your character in a field. This guide covers saving a file, picking it under Select pattern, and growing a tiny path you code and run yourself with walking, camera rotation, and more complex techniques.

To install someone else’s script, copy field settings, or test from the console, check out Custom patterns. You can use Pattern API as a reference while you develop your own patterns.

How gather patterns run

Revolution treats each gather script in two phases. At load time, it reads .lua files under patterns/gather, picks up SetName and other top-level Set* calls for the field card, and prepares the script. SetName is the label in Select pattern. Other Set* calls become defaults on that card. At run time, when gather starts on that field, Revolution runs the script top to bottom. Each walk or wait finishes before the next line runs, and the script repeats while gather continues.

Gather patterns are simple walks, waits, and camera rotation in a field. They are not travel routes between locations.

API you will use here

These are the gather-pattern calls this tutorial builds on. Full signatures and optional helpers are on Pattern API.

Call	What it does
Walk / WalkAsync	Move your character by direction and studs
Sleep / SleepStuds	Pause between movements
SetYaw	Set camera rotation before relative walks
Pattern.*	Read active Pattern settings from the field card
SetName, SetLength, …	Load-time defaults for the field card

Before you start

• You can add a field and pick a pattern on Choose fields and patterns.
• You have a plain-text editor (Notepad, VS Code, or similar).
• Player Movespeed under Settings → Game → Movement matches your in-game movespeed with no speed buffs. Walk distance is timed from that speed — a mismatch makes every custom path drift.

Find the gather patterns folder

You can find custom gather scripts in the patterns gather folder:

Windows

Use patterns\gather next to the Revolution app, or %APPDATA%\RevolutionMacro\patterns\gather if the folder next to the app is missing.

macOS

Use Patterns/gather under ~/Library/Application Support/RevolutionMacro/.

Create the gather folder if it is missing. Save your file as something like my_first_pattern.lua.

Note

Save the file and restart Revolution so the pattern list reloads.

1. Minimal square pattern

Create my_first_pattern.lua with this exact file:

SetName("MyFirstPattern")

-- One flower tile is about 4 studs. Start small.
local step = 4 * 4

Walk(Forward, step)
Walk(Right, step)
Walk(Backward, step)
Walk(Left, step)

SetName sets the picker label at load time. Each Walk holds a direction key until your character covers that many studs. Forward, Backward, Left, and Right are direction constants the pattern API provides.

Try it

1. Save the file under the gather folder.

2. Restart Revolution Macro.

3. Open Gather → Fields, edit a field, open Select pattern, and choose MyFirstPattern.





4. Start the macro on that field. You should see the character walk a square and then repeat while gather continues.

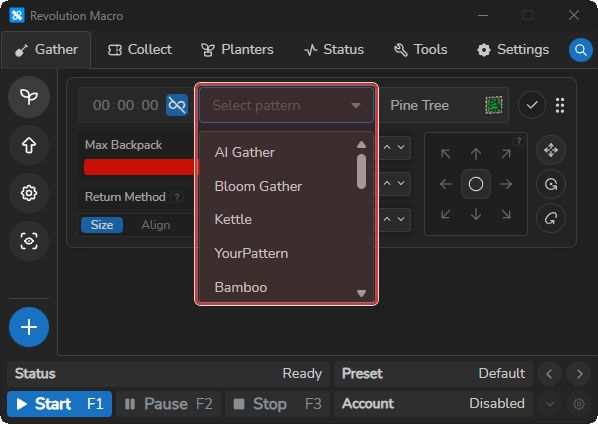

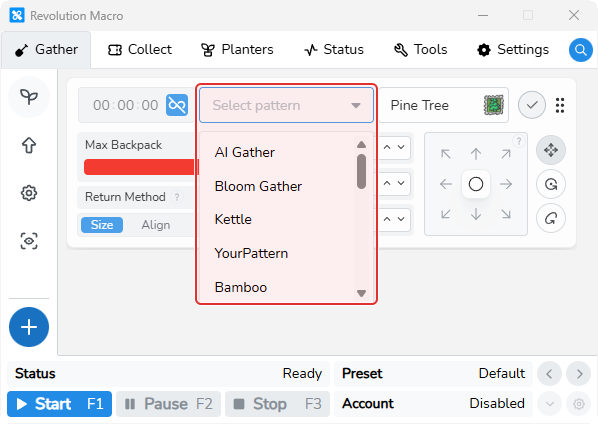

You should see: MyFirstPattern next to built-ins such as Kettle, AI Gather, and Bloom Gather. If the name is missing, confirm the folder path, restart, and check for compile errors in the steps below.

2. Directions and studs

Walk always takes a direction and a distance in studs:

Walk(Forward, 16)   -- same as 4 * 4
Walk(Right, 8)      -- same as 2 * 4

Community patterns usually write distances as n * 4 because one flower tile is about four studs.

Keep Player Movespeed matched. If the setting is wrong, a “16 stud” walk finishes short or long and the square stops closing.

3. Pauses with Sleep and SleepStuds

Back-to-back Walk calls can feel abrupt. Insert short waits between movements:

SetName("MyFirstPattern")

local step = 4 * 4

Walk(Forward, step)
Sleep(20)
Walk(Right, step)
Sleep(20)
Walk(Backward, step)
Sleep(20)
Walk(Left, step)
Sleep(20)

• Sleep(ms) waits a fixed number of milliseconds.
• SleepStuds(studs) waits as long as it would take to walk that many studs at the current movespeed.

You should see: the same square, with a brief pause at each corner.

4. Camera rotation with SetYaw

Walk(Forward, …), Left, Right, and Backward are relative to the camera. Call SetYaw before you lay out a path so each movement points the way you expect.

Only use SetYaw to change facing in a gather pattern — not rotate keys. SetYaw takes 0–7. Common values are 0 away from the hives, 2 toward red HQ, 4 toward the hives, and 6 toward blue HQ.

SetYaw(0)   -- look away from the hives
Walk(Forward, 4 * 4)

SetYaw(2)   -- look toward red HQ
Walk(Forward, 4 * 4)

Restart and pick MyFirstPattern after you add yaw changes so you can confirm each movement.

5. WalkAsync for diagonals

A single Walk only holds one movement key. Diagonal movement needs WalkAsync: start one axis in the background, then Walk the other so both keys are down together.

SetName("MyFirstPattern")

local step = 4 * 4

Walk(Forward, step)
Sleep(20)
Walk(Right, step)
Sleep(20)

-- Diagonal cut: backward and left at the same time
WalkAsync(Backward, step)
Walk(Left, step)
Sleep(20)

Restart, pick MyFirstPattern again, and run it. You should see: three cardinal sides, then a diagonal cut instead of a fourth square corner.

You can also write Walk({Backward, Left}, step) for the same two-axis move. Prefer plain Walk for the main loop. Use WalkAsync when you need a diagonal.

6. Scale with the Pattern table

Hard-coding 4 * 4 everywhere ignores Length, Width, and Alignment on the field card. During a gather run, the read-only Pattern table mirrors the Pattern settings active on that field — not the field’s Size, Position, or Tilt settings:

Field	Meaning
Pattern.Length	Length from the field card
Pattern.Width	Width from the field card
Pattern.Distance	Distance from the field card
Pattern.Alignment	Alignment amount from the field card
Pattern.Repetitions	Repeat count from the field card

Read those values when you size walks:

SetName("MyFirstPattern")

local step = Pattern.Length * 4
local align = Pattern.Alignment

Walk(Forward, step + align)
Sleep(20)
Walk(Right, step)
Sleep(20)
Walk(Backward, step + align)
Sleep(20)
Walk(Left, step)
Sleep(20)

Change Length on the field card, restart if you edited the script, and run again. You should see: a larger or smaller square that follows the card, not only the numbers in the file.

7. Name and field-card defaults

Top-level Set* calls next to SetName fill defaults on the field card when Revolution loads the file. For facing during the run, call SetYaw in the script body.

SetName("MyFirstPattern")
SetLength(4)
SetWidth(4)
SetDistance(3)
SetShiftLock(true)
SetWalkReturn(true)

local step = Pattern.Length * 4
-- …walks…

Common load-time calls include SetName, SetLength, SetWidth, SetDistance, SetShiftLock, and SetWalkReturn. Full lookup entries are on Pattern API.

When something fails

Break the script on purpose once so you know how to handle failures. Change the first line to invalid Lua:

SetName("MyFirstPattern"

Save and restart. Revolution should report Failed to compile Lua pattern or Failed to extract metadata from Lua pattern, and the name stays out of the picker until you fix the file.

If the script loads but throws while running, the macro reports Pattern Execution Failed, waits about five seconds, and continues. Fix the error, save, and restart.

Common fixes:

1. Confirm the file is under gather, not another patterns subfolder.
2. Keep SetName("MyFirstPattern") as a string literal near the top.
3. Match Player Movespeed before blaming the script for drift.
4. Until the custom name loads, pick Kettle on the field card so gather still runs.

Drift or stuck movement after field converts is usually field Size/Position/Tilt or movespeed — see Macro resets or gets stuck.

Final pattern

Copy this as a complete starter you can keep editing:

SetName("MyFirstPattern")
SetLength(4)
SetWidth(4)
SetDistance(3)
SetShiftLock(true)
SetWalkReturn(true)

local step = Pattern.Length * 4
local align = Pattern.Alignment

SetYaw(0)

Walk(Forward, step + align)
Sleep(20)
Walk(Right, step)
Sleep(20)

-- Diagonal cut (needs WalkAsync — a lone Walk cannot hold two keys)
WalkAsync(Backward, step)
Walk(Left, step)
Sleep(20)

-- Optional wall-compensation style pair
if align ~= 0 then
    WalkAsync(Left, align)
    Walk(Backward, align)
    Sleep(20)
    WalkAsync(Right, align)
    Walk(Forward, align)
    Sleep(20)
end

Save under the gather folder, restart Revolution, pick MyFirstPattern on a field, and run gather. From here, read built-ins such as Kettle under patterns/gather for denser walks, and use Pattern API as a reference for calls beyond simple walks.
